Détails sur le produit:
|
| Nom de produit: | Câble de fibre | Type de fibre: | UIT G652D, G657A, OM1, OM2, OM3, OM4 |
|---|---|---|---|
| Noyau de fibre: | 2-96 noyaux | Application: | câble optique extérieur autosuffisant de fibre |
| Blindé: | oui | Température de fonctionnement: | -40℃ à + 70℃ |
| Gaine: | Polyéthylène noir (PE) | Emballage: | 1km/2km/4km/roll |
| Couleur: | Couleur noire et habituellement noire, bleu ou d'autres, Aqua, jaune | Matériel de veste: | LSZH, PVC, PE, TPU, PVC/LSZH |
| Gaine: | MDPE/HDPE, ASSEMBLÉE PLÉNIÈRE, LSZH, PVC, ect | Porteur central: | fil d'acier, fil métallique, FRP |
Description

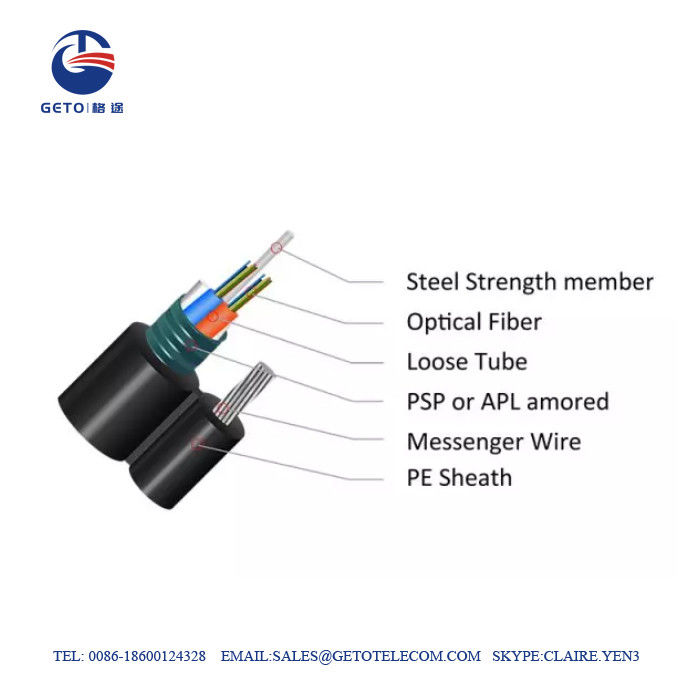

GYTC8S The mental strength member is made up of stranded wires as the supporting part is completed with a polyethylene(PE) sheath to be figure 8 structure. It is a typical self-supporting outdoor fiber optic cable with features of moisture resistance and crush resistance suitable for aerial application.
Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The steel-wire strength member as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance.
Both single-mode type and multimode types are available. Various lengths and fiber numbers can be customized according to customers’ requirements.
Specification
GYTC8S aerial fiber cable (Loose tube stranding, Metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive sheath,)
Standards: YD/T 1155-2011 ‘8’ layer self-supporting optical cable for telecommunications
| Fiber Count | Structure | Fibers/ tube | Loose tube diameter (mm) | CSM diameter / pad diameter (mm) | Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable Weight (kg/km) |
| 4 | 1+5 | 4 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
| 6 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
| 8 | 1+5 | 4 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
| 12 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
| 24 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 147 |
| 36 | 1+6 | 6 | 1.7±0.1 | 1.8/1.8 | 1.6±0.1 | 9.4 ±0.5/16.3 ±0.8 | 162 |
| 48 | 1+5 | 12 | 2.0±0.1 | 1.4/1.4 | 1.6±0.1 | 9.7 ±0.5/16.6 ±0.8 | 162 |
| 72 | 1+6 | 12 | 2.0±0.1 | 2.0/2.0 | 1.6±0.1 | 10.4 ±0.5/17.3 ±0.8 | 185 |
| 96 | 1+8 | 12 | 2.0±0.1 | 2.2/3.5 | 1.6±0.1 | 12.0 ±0.5/19.2 ±0.8 | 223 |
